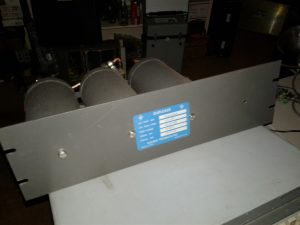

GE/DB Prod UHF Duplexer SN: D71655-4

UHF Duplexer Tuning & Testing Prior to Shipping to Client.
Tuning/Tessting Date: 20-Nov-2017
Mfr. by DB Products for General Electric (G.E.)
G.E. Part #: 19C307166P1Z
DBP Part #: 040165-002
S/N: D71655-4
Frequency: 444.300/449.300 MHz Repeater Pair

Low Pass Branch
Isolation: 101.88 dB
Insertion Loss: 1.28 dB



Low Pass Branch
Return Loss: 37.60 dB
VSWR: 1.027:1

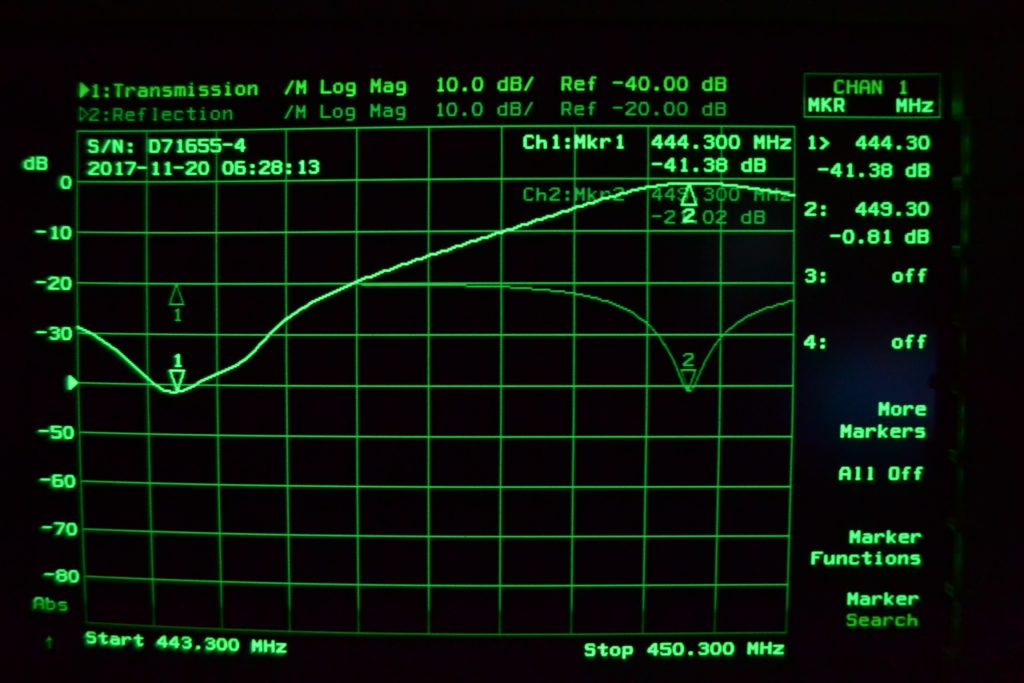

High Pass Branch
Isolation: 41.38 dB
Insertion Loss: 0.81 dB
Low Pass Branch
Return Loss: 21.01 dB
VSWR: 1.195:1
